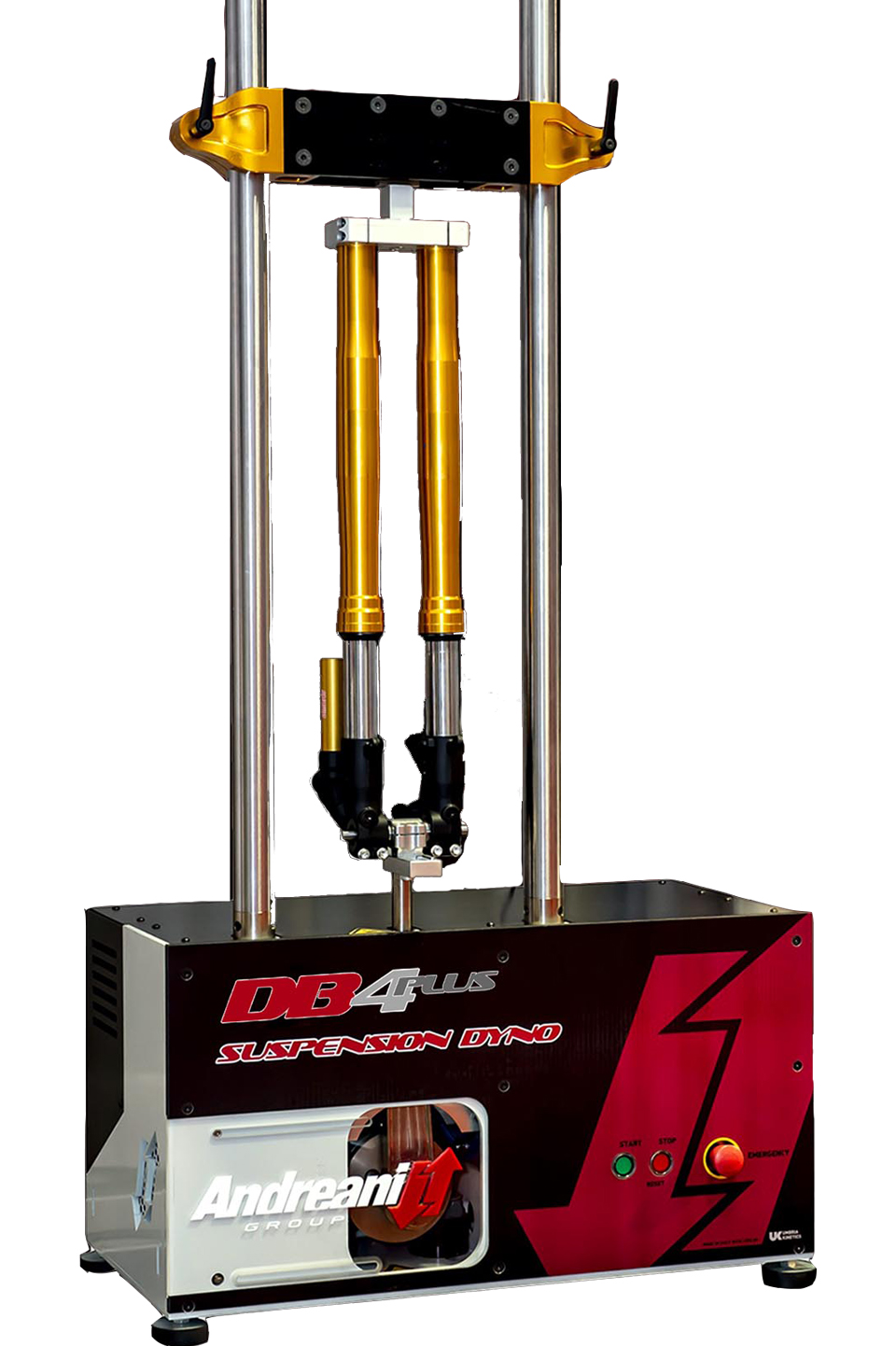

The DB4 PLUS is the higher-power version of the DB4, optimized for testing suspensions of off-road bikes and cars.Thanks to the powerful 5.5kW 380v AC-Motor, it allows you to reach higher speeds and forces compared to his smaller relative, the DB4.The DB4+ is the perfect tool for specialized technicians who need to characterize high force or high speed suspensions.The improved mechanic will allow to get where the DB4 can’t take you.
| DB4 Plus Main Features | |
|---|---|
| Engine Power | 5.5 Kw |
| Three-phase | 380V |
| Load Cell | till 5000N |
| Software easy to use | |
| Stroke | from 15 to 100 mm |
| Max Speed | from 300 to 2000 mm/s |
| Min Speed | from 9.5 to 63 mm/s |
| Weight | 210 Kg |
| Depth | 424 mm |
| Height (including bars) | 1650 mm |
| Bars height | 1150 mm |
| Width | 830 mm |
